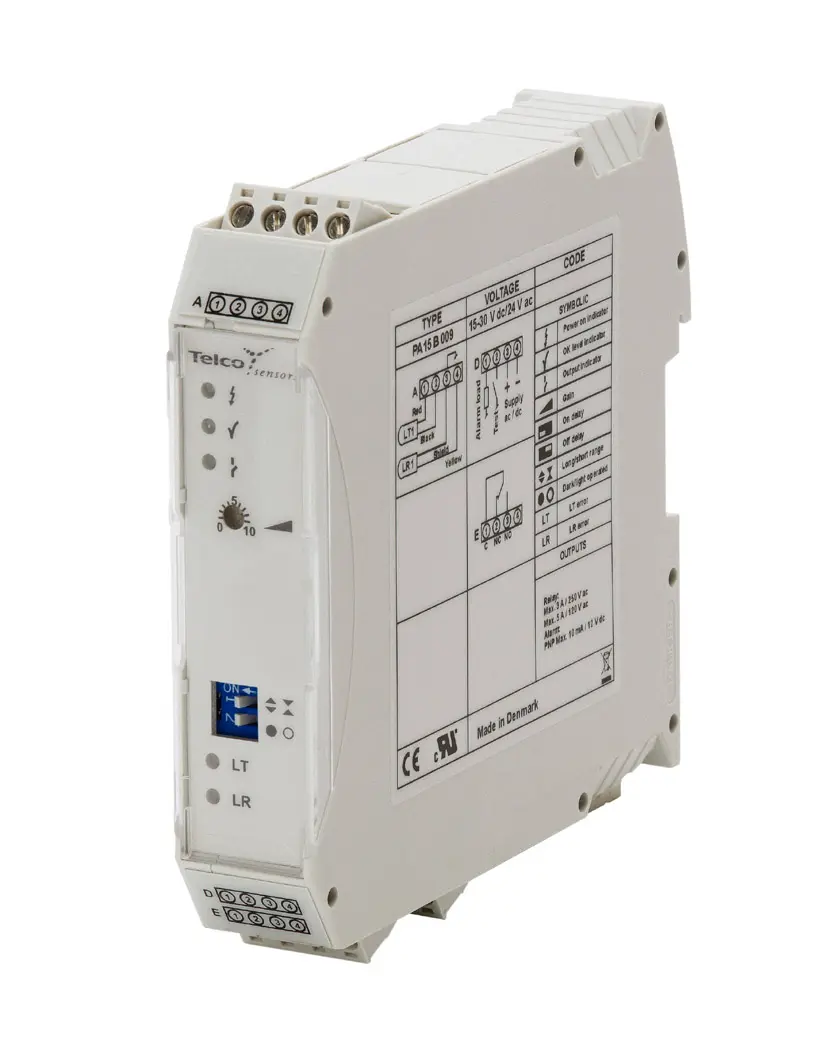

Telco PA 15 B 209, Fotovoltaikanlage, P/n: 10693

Name: Telco PA 15 B 209, Fotovoltaikanlage, P/n: 10693
Brand: TELCO
Price: 332.9 EUR
Availability: InStock

Marke: TELCO

Hersteller Artikel-Nr.: 10693

Produkt-Nr.: P-DFKYBK

Technische Daten

Function: Amplifier
Supply Voltage: 15 – 30 V dc / 24 V ac
Sensing Range: 70 m
Sensitivity Adjustment: Manual
Output: PNP
Housing: Removable screw terminals
Supply Voltage: 15 – 30 V dc / 24 V ac
Voltage Tolerance: +/– 10 %
Current Consumption: Max. 2,5 W
Response Time ton / toff, Transistor: 25 ms / 25 ms
Output, Transistor: 30 V dc / 60 mA
Alarm Output, Transistor: Yes
Test Input: Yes
Power On Indicator: Green LED
Output Indicator: Yellow LED
LR Sensor Failure Indicator: Red LED
LT Sensor Failure Indicator: Red LED
Signal Level Indicator: Green LED
Sensor Monitor LED Drive: Green LED on the receiver: ‘Power ON’ Yellow LED on the transmitter: PA 15 output activated
Hysteresis: Approx. 45 %
Operation Frequency, Transistor: 20 Hz
Housing Material: Polyamide
Operation Temperature: – 10 to +50 °C
Storage Temperature: – 40 to +80 °C
Sealing Class: IP 40
