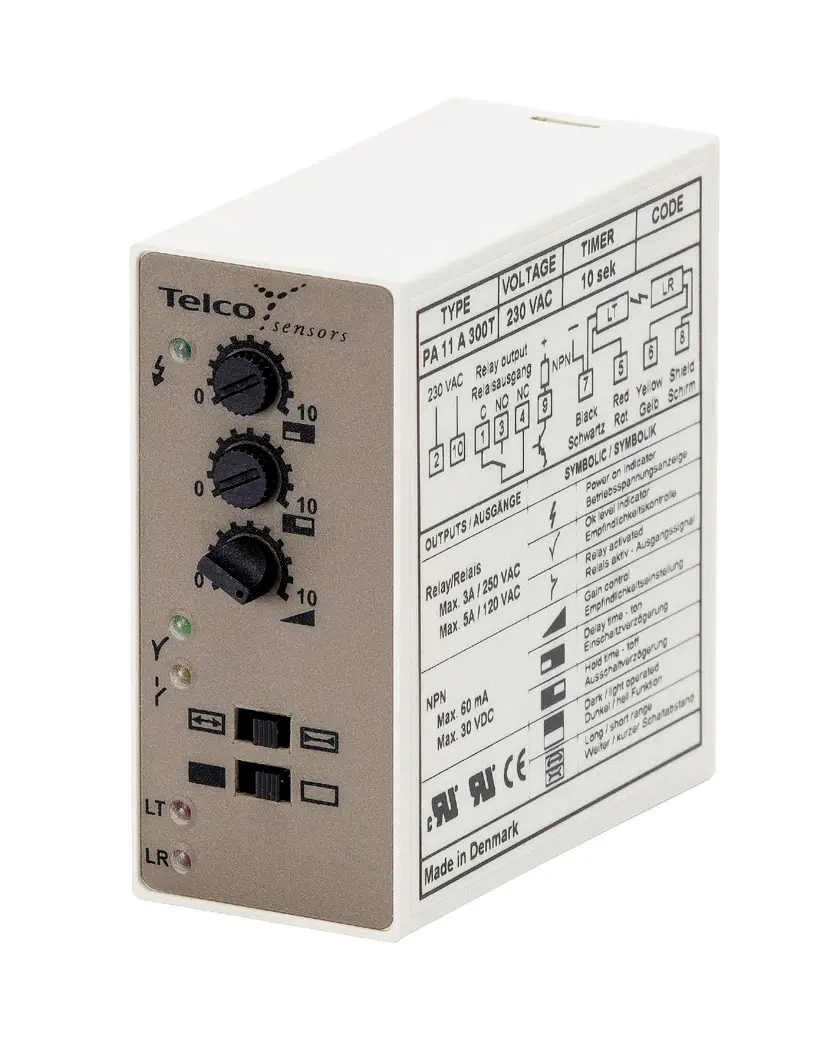

Telco PA 11 A 300T, Fotovoltaikanlage, P/n: 8669

Name: Telco PA 11 A 300T, Fotovoltaikanlage, P/n: 8669
Brand: TELCO
Price: 290.8 EUR
Availability: InStock

Marke: TELCO

Hersteller Artikel-Nr.: 8669

Produkt-Nr.: P-DFKSXD

Technische Daten

Function: Amplifier
Supply Voltage: 230 V ac
Sensing Range: 70 m
Sensitivity Adjustment: Manual
Output: Relay and NPN
Timer: On/Off Delay
Housing: 11-pole DIN socket
Supply Voltage: 230 V ac
Voltage Tolerance: +/– 15 %
Current Consumption: Max. 3,5 VA
Response Time ton / toff, Relay: 35 ms / 35 ms
Response Time ton / toff, Transistor: 25 ms / 25 ms
Output, Relay: 1 open/1 close, 250 V ac/3 A, 120 V ac/5 A
Output, Transistor: 60 mA / 30 V dc
Power On Indicator: Green LED
Output Indicator: Yellow LED
LR Sensor Failure Indicator: Red LED
LT Sensor Failure Indicator: Red LED
Signal Level Indicator: Green LED
Sensor Monitor LED Drive: Green LED on the receiver: ‘Power ON’ Yellow LED on the transmitter: PA 11 output activated
Hysteresis: Approx. 45 %
Operation Frequency, Relay: 14 Hz
Operation Frequency, Transistor: 20 Hz
Delay Time ton / toff: 0 – 10 sec, adjustable
Housing Material: Noryl
Operation Temperature: – 10 to +50 °C
Storage Temperature: – 40 to +80 °C
Sealing Class: IP 40
