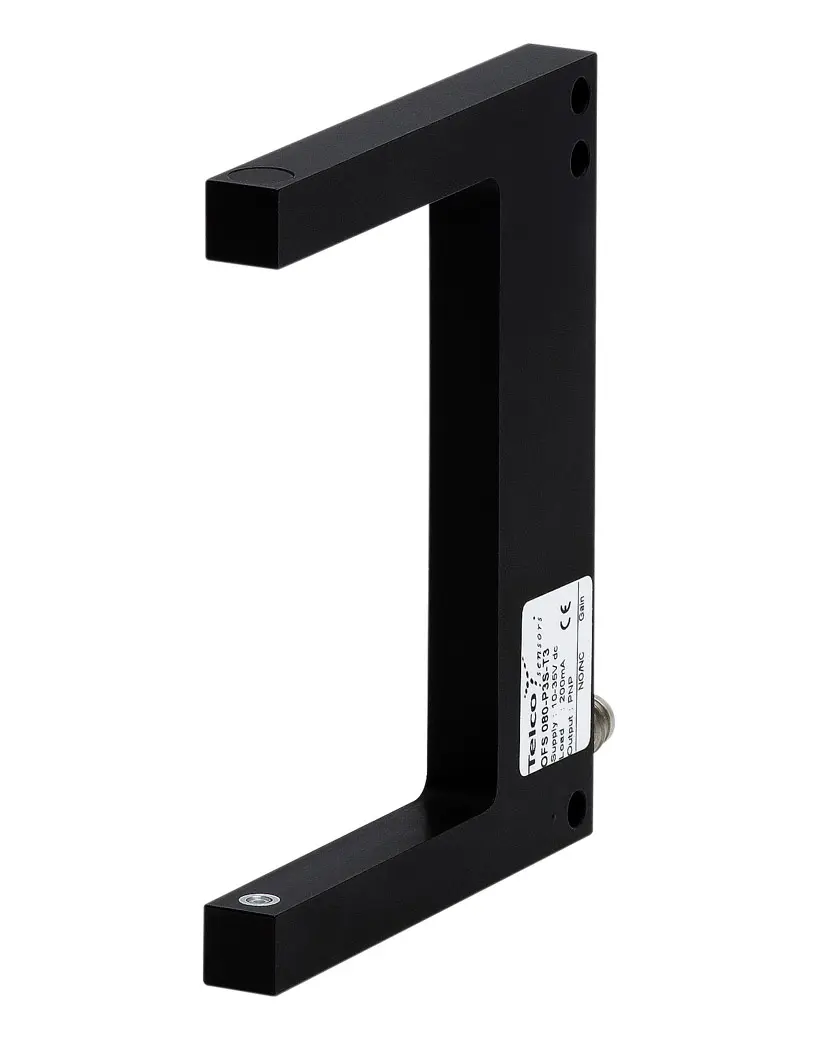

Telco OFSR 080 P3S T3, Fotovoltaikanlage, P/n: 4858
Technische Daten
- Gewicht
- 1 kg
Produktbeschreibung
- Operation Mode: Fork Sensors
- Function: Fork Sensor
- Supply Voltage: 10 - 35 V dc
- Light Source: Visible Red
- Control Feature: Sensitivity pot. and light/dark switch
- Output: PNP
- Output Status: N.C./N.O.
- Fork Opening Width: 80 mm
- Fork Opening Depth: 55 mm
- Supply Voltage: 10-35 V dc
- Reverse Polarity Protected: Yes
- Short Circuit Protected: Yes
- Current Consumption: Max. 35 mA
- Max. Output Load: 200 mA
- Response Time ton / toff: 0,1 ms / 0,1 ms
- Output Indicator: Yellow LED
- Hysteresis: < 0,2 mm
- Light Source: Visible red (660 nm)
- Resolution: 0,4 mm
- Operation Frequency: 5000 Hz
- Housing Material, Front Lens: Glass
- Housing Material, Fork Housing: Aluminium (black anodised)
- Vibration: 10 - 55 Hz, 0,5 mm
- Shock: 10 g
- Operation Temperature: – 20 to +60 °C
- Storage Temperature: – 40 to +80 °C
- Sealing Class: IP 67
- Light Immunity 15°: > 50 000 lux
Produktangebot
Sichere Zahlung
Rechnung
Schneller Versand
etc.
Fragen zum Produkt?
Kennzeichnungen
- Artikeltyp
- Photovoltaic Systems
