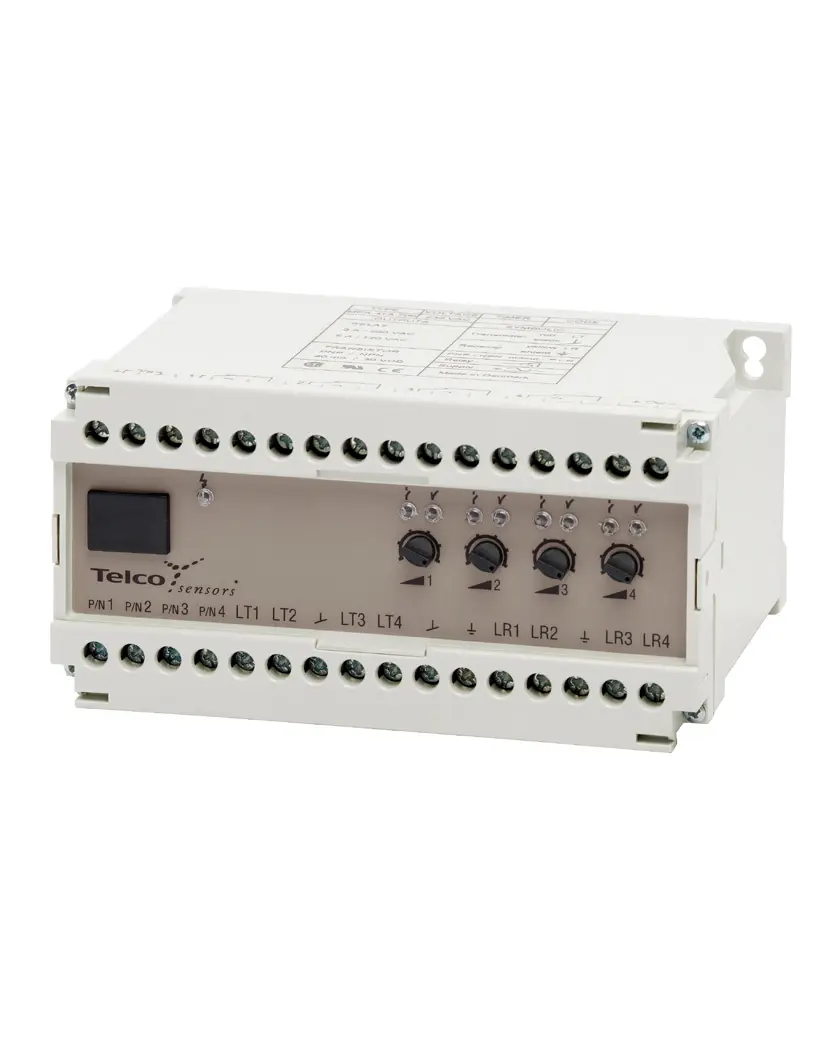

Telco MPA 41 A 700, Analoger Schalter, Multiplexer, Demultiplexer, P/n: 5373
Technische Daten
- Gewicht
- 1 kg
Produktbeschreibung
- Function: Amplifier
- Supply Voltage: 230 V ac
- Number of Channels: 4
- Sensing Range: 35 m
- Sensitivity Adjustment: Manual
- Output: 4 individual relays and 4 individual NPN/PNP
- Housing: Screw terminals
- Supply Voltage: 230 V ac
- Voltage Tolerance: +/– 15 %
- Current Consumption: Max. 6,5 VA
- Response Time ton / toff, Relay: Short range: 35ms/35msLong Range: 60 ms/60 ms
- Response Time ton / toff, Transistor: Short range: 25 ms/25 msLong Range: 50 ms/50 ms
- Output, Relay: 1 open/ 1 close, 250 V ac/3 A, 120 V ac/5 A
- Output, Transistor: 40 mA / 30 V dc
- Power On Indicator: Green LED
- Output Indicator: Red LED
- Signal Level Indicator: Green LED
- Hysteresis: Approx. 35 %
- Operation Frequency, Relay: Short range: 14 Hz / Long Range: 8 Hz
- Operation Frequency, Transistor: Short range: 20 Hz / Long Range: 10 Hz
- Housing Material: Polycarbonate
- Operation Temperature: – 10 to +50 °C
- Storage Temperature: – 40 to +80 °C
- Sealing Class: IP 30
