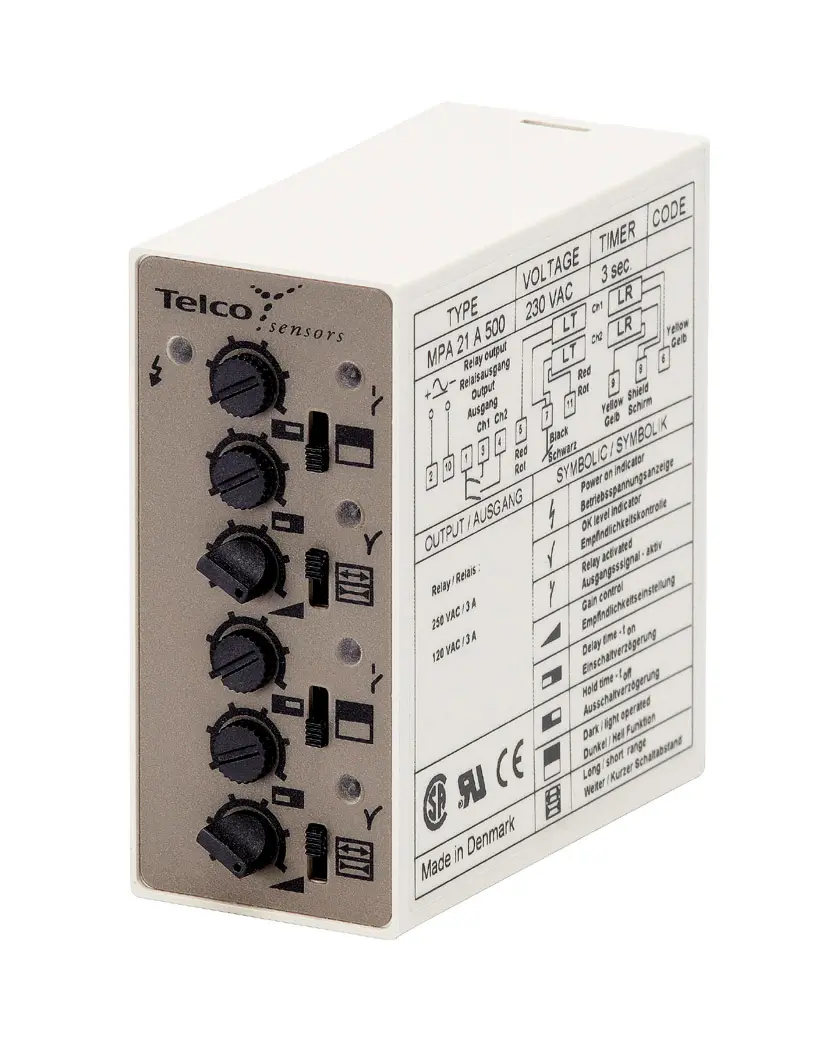

Telco MPA 21 A 500, Analoger Schalter, Multiplexer, Demultiplexer, P/n: 5342
Technische Daten
- Gewicht
- 1 kg
Produktbeschreibung
- Function: Amplifier
- Supply Voltage: 230 V ac
- Number of Channels: 2
- Sensing Range: 45 m
- Sensitivity Adjustment: Manual
- Output: 2 individual relays
- Timer: On/Off Delay
- Housing: 11-pole DIN socket
- Supply Voltage: 230 V ac
- Voltage Tolerance: +/– 15 %
- Current Consumption: Max. 3 VA
- Response Time ton / toff, Relay: 55 ms / 55 ms
- Output, Relay: 1 open/ 1 close, 250 V ac/3 A, 120 V ac/5 A
- Power On Indicator: Green LED
- Output Indicator: Red LED
- Signal Level Indicator: Green LED
- Hysteresis: Approx. 35 %
- Operation Frequency, Relay: 9 Hz
- Delay Time ton / toff: 0 – 3 sec, adjustable
- Housing Material: Noryl
- Operation Temperature: – 10 to +50 °C
- Storage Temperature: – 40 to +80 °C
- Sealing Class: IP 40
