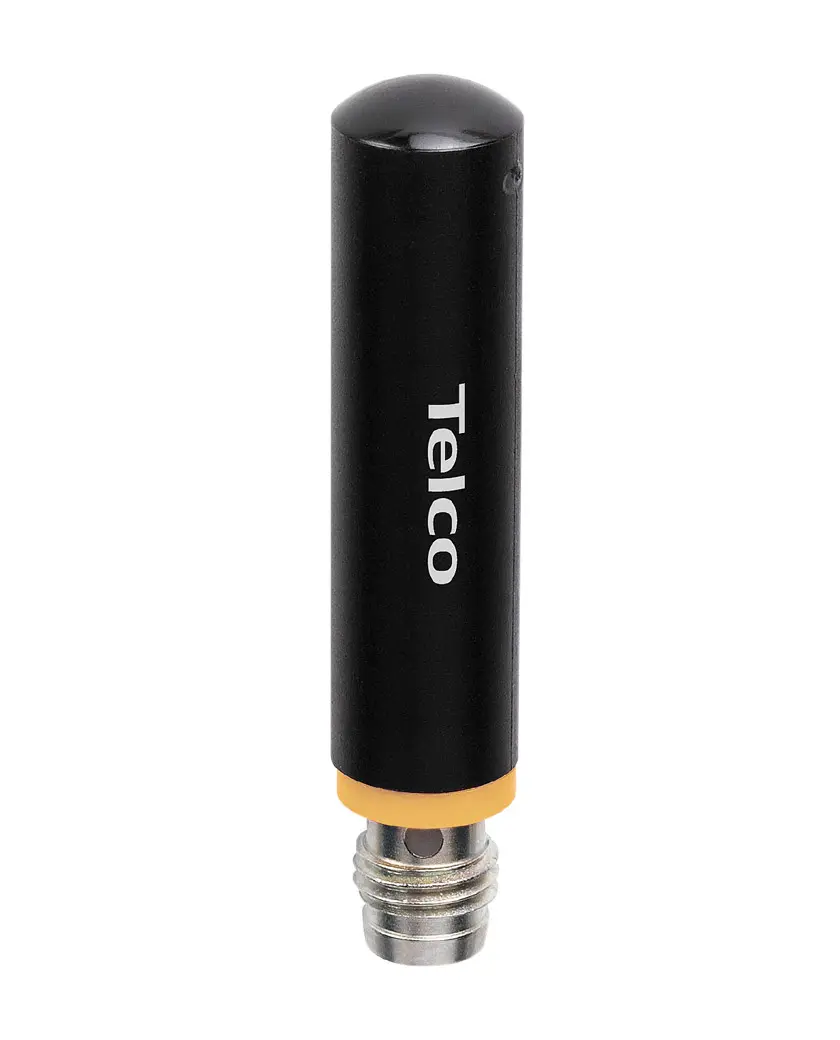

Telco LR 100L AP38 T3, Fotovoltaikanlage, P/n: 8807
Technische Daten
- Gewicht
- 1 kg
Produktbeschreibung
- Function: Receiver
- Sensing Range: Up to 18 m
- Indicators: Yes
- Optical Angle: +/- 7° (opening)
- Housing: ø10
- Housing Material: Plastic
- Connection: 3 pin, M8 plug
- Photo Transistor: Silicon NPN
- Power On Indicator: Green LED
- Housing Material, Front Lens: Polycarbonate
- Housing Material, Sensor Housing: Polycarbonate
- Cable: 2 x 0,25 mm²
- Cable Sleeve: PVC ø 4,0 mm
- Min. Cable Bending Radius: 45 mm
- Vibration: 10 – 55 Hz, 0,5 mm
- Shock: 30 g
- Operation Temperature: – 25 to +65 °C
- Storage Temperature: – 40 to +80 °C
- Sealing Class: IP 67
- Light Immunity 20°: > 80 000 lux
Produktangebot
Sichere Zahlung
Rechnung
Schneller Versand
etc.
Fragen zum Produkt?
Kennzeichnungen
- Artikeltyp
- Photovoltaic Systems
