Schmersal TA 471-12/12Y Schwerlast-Positionsschalter, P/N 101061111
Technische Daten
- Gewicht
- 4,92 kg
Produktbeschreibung
- Metal enclosure
- 4 or 6 Contacts
- 194 mm x 123 mm x 130 mm (basic component)
- 3 cable entries M 25 x 1.5
- Continuous adjustment of lever position 360°
- Product type description: TA 471-12/12Y
- Article number (order number): 101061111
- EAN (European Article Number): 4030661058214
- eCl@ss number, version 12.0: 27-27-06-01
- eCl@ss number, version 11.0: 27-27-06-01
- eCl@ss number, version 9.0: 27-27-06-01
- ETIM number, version 7.0: EC000030
- ETIM number, version 6.0: EC000030
- Standards: EN IEC 60947-5-1
- Working principle: mechanical
- Slide form: Castor
- Housing material: Grey cast iron, galvanised
- Housing coating material: painted
- Gross weight: 4,920 g
- Number of NC, left: 2
- Number of NC, right: 2
- Number of NO, left: 1
- Number of NO, right: 1
- B10DNormally-closed contact (NC): 2,000,000 Operations

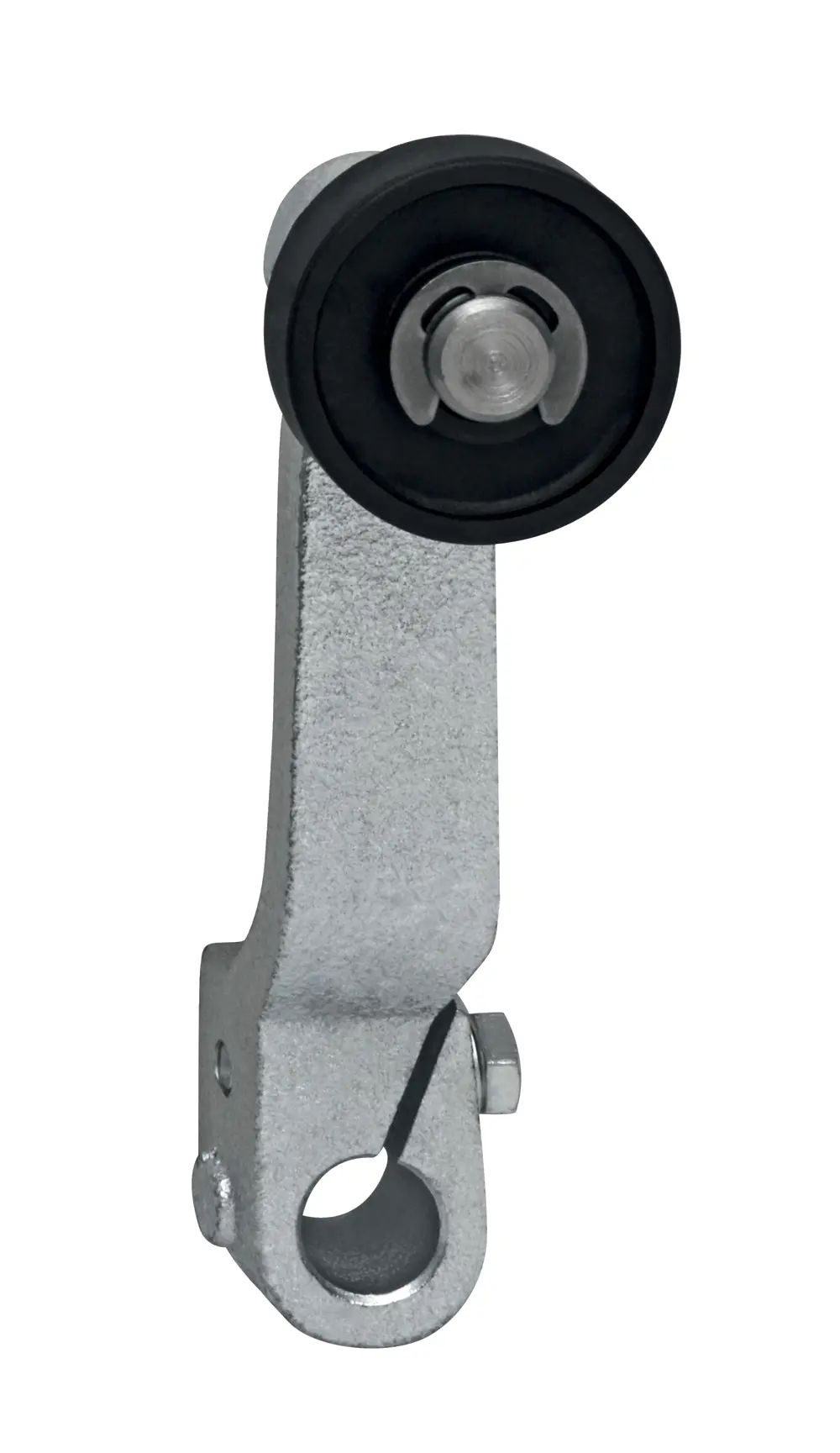

- Actuating element: Roller lever
- Roller material: Plastic
- Mechanical life, minimum: 1,000,000 Operations
- Actuating angle, from left of switch axis: 30 °
- Actuating angle, from right of switch axis: 30 °
- Contact opening: 2 x 4 mm
- Actuation direction: Each time 75° right-hand side and left-hand side rotation
- Actuating speed, minimum: 0.1 mm/min
- Actuating speed, maximum: 3 m/s
- Note (Actuating speed): Actuating speed with vertical actuating angle to switch axis
- Termination: Screw terminals M20 x 1.5
- Cable section, minimum: 1.5 mm²
- Cable section, maximum: 4 mm²
- Note: All indications including the conductor ferrules.
- Wire cross-section: 11 AWG
- Length of sensor: 190 mm
- Width of sensor: 194 mm
- Height of sensor: 143 mm
- Width of Castor: 9 mm
- Diameter of Castor: 36 mm
- Degree of protection: IP65
- Ambient temperature: -30 ... +90 °C
