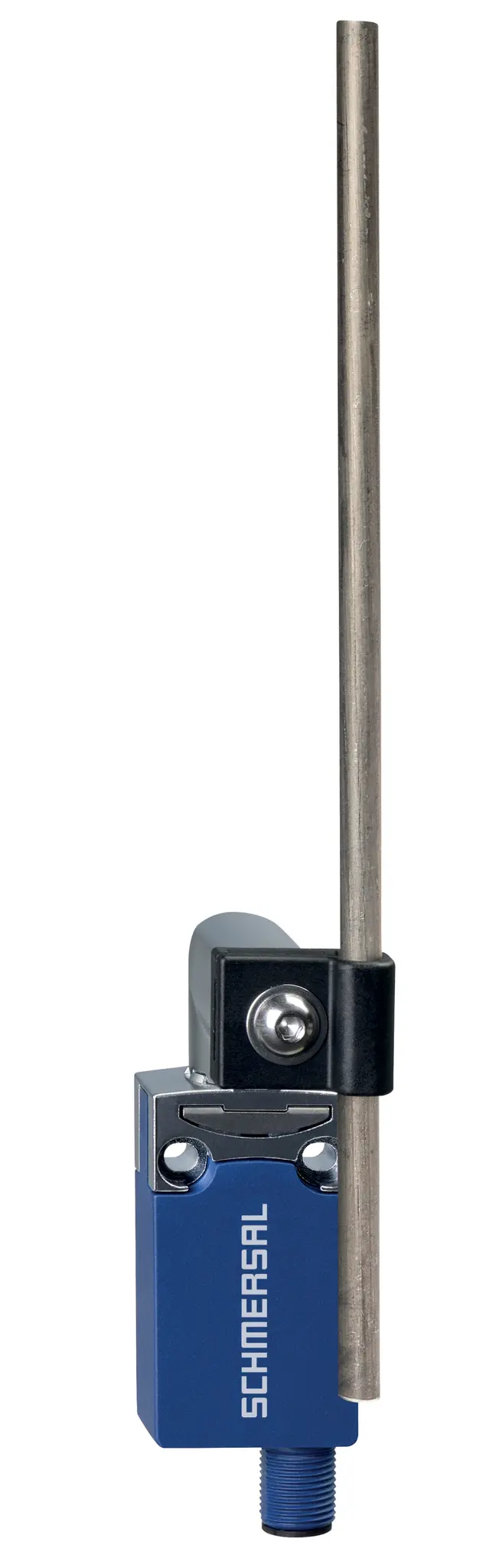

Schmersal PS116-T12-ST-J203 Positionsschalter, P/N: 103010001
Technische Daten
- Gewicht
- 122 g
Produktbeschreibung
- only for positioning tasks
- Thermoplastic enclosure
- Symmetric enclosure
- Lever angle adjustable in 15° steps
- Protection class IP66, IP67
- Actuator heads can be repositioned by 8 x 45°
- Design to EN 50047
- Product type description: PS116-T12-ST-J203
- Article number (order number): 103010001
- EAN (European Article Number): 4030661468693
- eCl@ss number, version 12.0: 27-27-06-01
- eCl@ss number, version 11.0: 27-27-06-01
- eCl@ss number, version 9.0: 27-27-06-01
- ETIM number, version 7.0: EC000030
- ETIM number, version 6.0: EC000030
- Standards: EN IEC 60947-5-1
- Housing construction form: Norm construction design
- Housing material: Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated
- Active area: Metal film
- Gross weight: 122 g
- Number of auxiliary contacts: 1
- Actuating element: Rod lever J200
- Mechanical life, minimum: 10,000,000 Operations
- Positive break force, minimum: 40 N
- Actuating speed, minimum: 60 mm/min
- Actuating speed, maximum: 1 m/s
- Actuating torque, minimum: 0.2 Nm
- Positive break torque: 0.6 Nm
- Connector position: Bottom
- Termination: Connector M12, 6-pole
- Wire cross-section: 0.5 mm 2
- Terminal (mechanical): bottom
- Length x Width x Height: Height of sensor: 169 mm (rod centre)
- Length of sensor: 16.6 mm
- Width of sensor: 31 mm
- Diameter of the Rod: 6 mm
- Length of the lever: 200 mm
- Degree of protection: IP66 IP67
- Ambient temperature: -30 ... +80 °C
- Protection class: II
- Rated insulation voltage Ui: 300 V
- Rated impulse withstand voltage Uimp: 4 kV
- Degree of pollution: 3
- Required rated short-circuit current: 400 A
- Utilisation category AC-15: 240 VAC
- Utilisation category AC-15: 1.5 A
- Utilis
