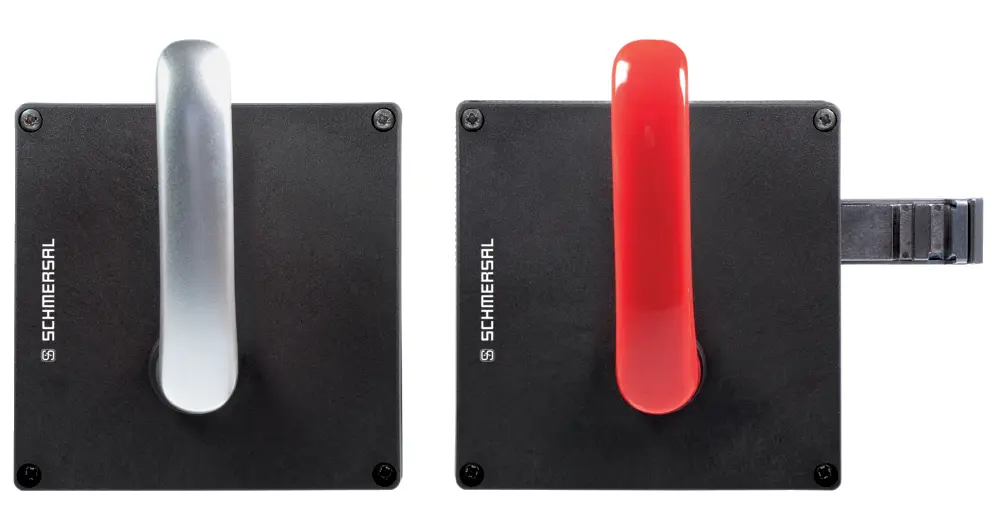

Schmersal AZ/AZM201-B30-RTIG1P1 Türgriffbetätiger, P/N: 103025197
Technische Daten
- Gewicht
- 1,144 kg
Produktbeschreibung
- Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
- Product type description: AZ/AZM201-B30-RTIG1P1
- Article number (order number): 103025197
- EAN (European Article Number): 4030661512716
- eCl@ss number, version 12.0: 27-27-26-06
- eCl@ss number, version 11.0: 27-27-26-06
- eCl@ss number, version 9.0: 27-27-26-06
- ETIM number, version 7.0: EC001487
- ETIM number, version 6.0: EC001487
- Note: Certification in combination with the AZ /AZM 201 devices
- Housing material: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Material of the actuator: Zinc die-cast
- Material of the operators: Aluminium, plastic coating
- Emergency exit material: Metal, plastic-coated
- Gross weight: 1,144 g
- Emergency exit: Yes
- Grip: handle
- Mechanical life, minimum: 1,000,000 Operations
- Door hinge: Right
- Holding force FZhin accordance with EN ISO 14119: 1,000 N
- Holding force Fmax, maximum: 1,300 N
- Actuator mounted: Inside
- Length of the actuator: 68 mm
- Width of the actuator: 115 mm
- Height of the actuator: 115 mm
- Length of the emergency exit: 94 mm
- Width of the emergency exit: 115 mm
- Height of the emergency exit: 115 mm
- Scope of delivery: The safety switch / solenoid interlock and the actuator unit must be ordered separately.: The safety switch / solenoid interlock and the actuator unit must be ordered separately.
Produktangebot
Weitere Angebote
Alle anzeigen (2)Sichere Zahlung
Rechnung
Schneller Versand
etc.
Fragen zum Produkt?
Kennzeichnungen
- Artikeltyp
- Safety Component Accessories
Alle Angebote
| 12 Monate | 249,31 € 296,68 € inkl. MwSt.* | Bestes Angebot | |||
| 12 Monate | 396,64 € 472,00 € inkl. MwSt.* | Maximal 13 verfügbar |
* zzgl. Versandkosten
