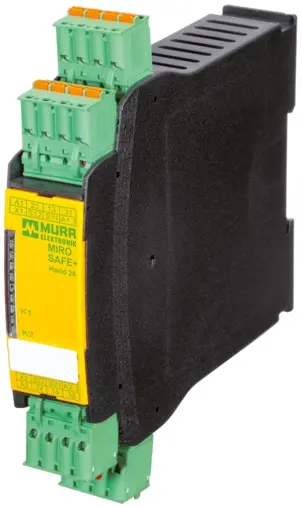

Murrelektronik 3000-33113-3020030, MIRO SAFE+ HAND 24

6 ATwo hand control

• DCavg (EN ISO 13849-1): 99 %
• Service life: 20 a
• Category (EN ISO 13849-1): 4
• Performance level (EN ISO 13849-1): e
• SIL (IEC 61508): 3
• Power consumption max.: 1,2 W
• Input voltage DC: 24 V
• Input voltage DC min.: 21,6 V
• Input voltage DC max.: 26,4 V
• No. of auxiliary contacts: 1
• No. of alarm outputs: 0
• No. of safety contacts: 2
• Utilization category AC-15 (EN IEC 60947-5-1): 6 A @ 230 V
• Utilization category DC-13 STOP0 (EN IEC 60947-5-1): 6 A @ 24 V
• Auxiliary contacts: 31-32
• Switching voltage AC max.: 250 V
• Switching voltage DC max.: 250 V
• Switching current max.: 6 A
• Switching capacity safety contacts STOP0: max. 250 V AC/6 A; min. 10 V AC/10 mA (resist./ind.), at suitable suppression
• Safety contacts: 13-14, 23-24
• Condition lifetime: load-dependent
• Electrical lifetime: 10000000 Cycles
• Mechanical endurance: 10000000 Cycles
• Material contact: Ag Sn O
• Material properties contact: positively driven, self-cleaning
• Mounting method: geschnappt
• Suitable for mounting type: mounting rail, (EN 60715)
• Height: 100 mm
• Width: 22,5 mm
• Depth: 121 mm
• Operating temperature min.: -25 °C
• Operating temperature max.: 60 °C
• Storage temperature min.: -40 °C
• Storage temperature max.: 85 °C
