Microchip Atmel-ICE Debugger, Entwicklungskit, Mikrocontroller SAM, AVR

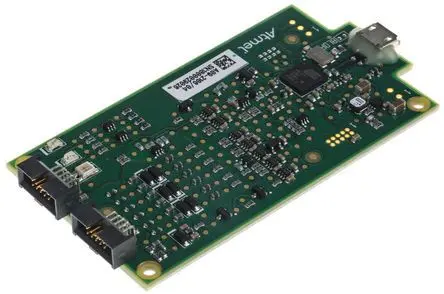

ATATMEL-ICE PCBA The Atmel-ICE series consists of development tools for debugging and programming ARM Cortex-M based Atmel SAM and Atmel AVR microcontrollers with on-chip debug capability. The Atmel-ICE series supports JTAG, SWD, PDI, TPI, aWire, SPI and debugWIRE interfaces and is compatible with Atmel Studio. Kit Contains: • Atmel-ICE unit without plastic encapsulation(130-6122) 130-6122 Full Kit available(130-6123) 130-6123 Basic Kit available System Requirements The Atmel-ICE unit requires that a front-end debugging environment Atmel Studio version 6.2 or later is installed on your computer. The Atmel-ICE should be connected to the host computer using the USB cable provided, or a certified Micro-USB cable. How to turn the Atmel - ICE on? The Atmel-ICE is powered by the USB bus voltage. It requires less than 100mA to operate, and can, therefore, be powered through a USB hub. The power LED will illuminate when the unit is plugged in. When not connected in an active programming or debugging session, the unit will enter low-power consumption mode to preserve your computers battery. The Atmel-ICE cannot be powered down - it should be unplugged when not in use. How does it connect? The Atmel-ICE communicates primarily using a standard HID interface and does not require a special driver on the host computer. The Atmel-ICE must be connected to an available USB port on the host computer using the USB cable provided, or suitable USB certified micro cable. The Atmel-ICE contains a USB 2.0 compliant controller and can operate in both full-speed and high-speed modes. For best results, connect the Atmel-ICE directly to a USB 2.0 compliant high-speed hub on the host computer using the cable provided.MontagesatzKabelsatz 177-9591 () Adaptersatz 177-9590 () Basis-Kit:( 130-6123 ) 130-6123 PCBA-Kit:( 130-6124 ) 130-6124 Vollständiges Kit:( 130-6122 ) 130-6122
