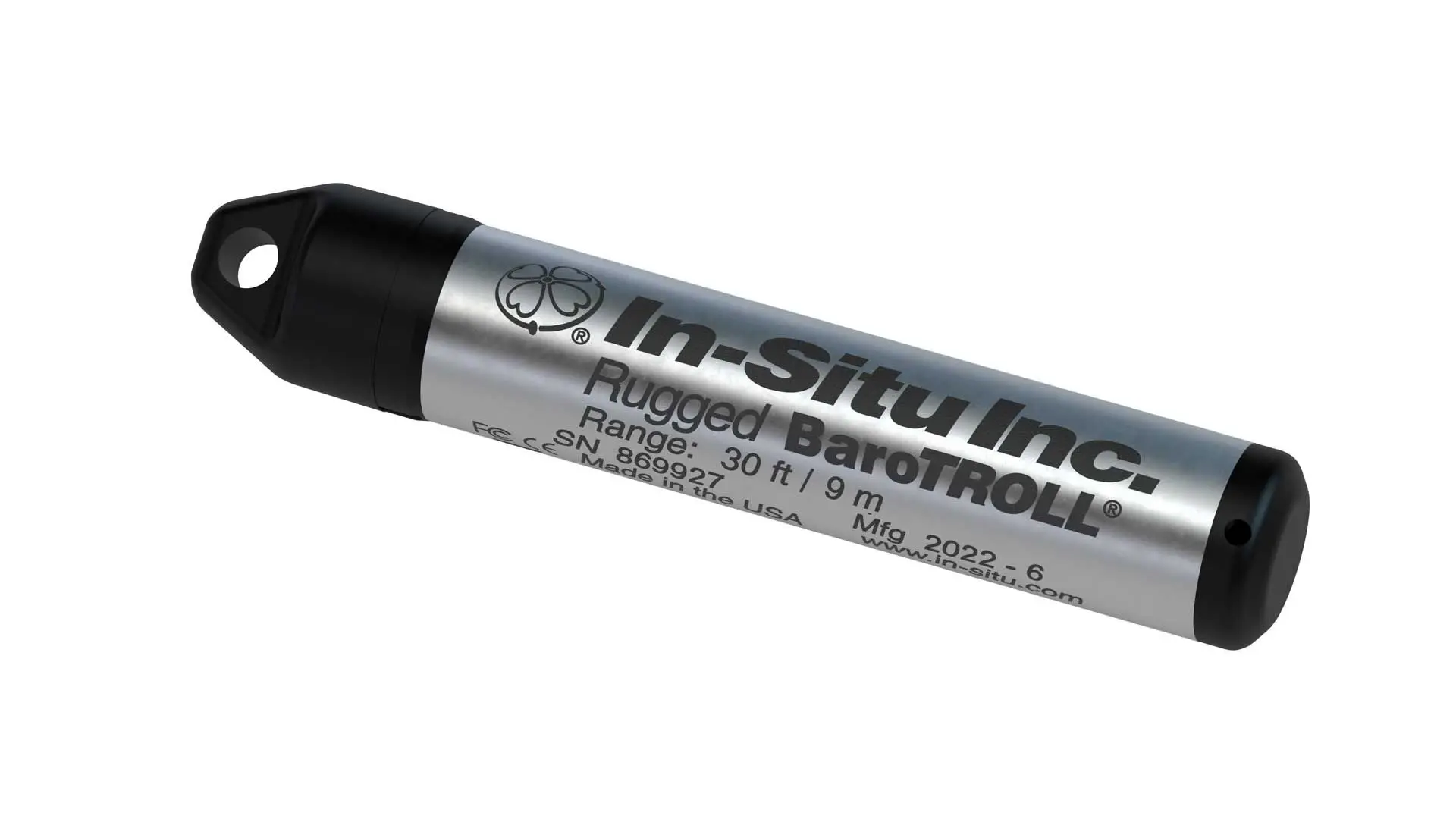

Rugged Baro TROLL - for use with Rugged TROLL 100 and 200. Deploy on backshell hanger (included) or Direct Read cable

Temperature ranges Operational: 0-50° C (32-122° F) Storage: -40-80° C (-40-176° F) Calibrated: 0-50° C (32-122° F) Diameter 2.62 cm (1.03 in.) Length 14.43 cm (5.68 in.) Weight 137 g (0.30 lb) Materials Titanium body; Delrin nose cone, hanger, backend Output options USB or RS232 via docking station; Modbus/RS485 or SDI-12 via Rugged TROLL 200 Cable Battery type & life 3.6 V lithium; 10 years or 2M readings External power 8-36 VDC Memory 2.0 MB Data records 120,000 Fastest logging rate 1 per minute Fastest output rate Modbus & SDI-12: 1 per second Log types Linear Sensor Type/Material Piezoresistive; Ceramic Range 7.0 to 30.0 psi; 0.5 to 2 bar Accuracy (FS) ±0.1% Resolution ±0.01% FS or better Units of measure Pressure: psi, kPa, bar, mbar, mmHg, inHg Temperature Sensor Accuracy ±0.3° C Resolution 0.01° C or better Units of measure Celsius or Fahrenheit
