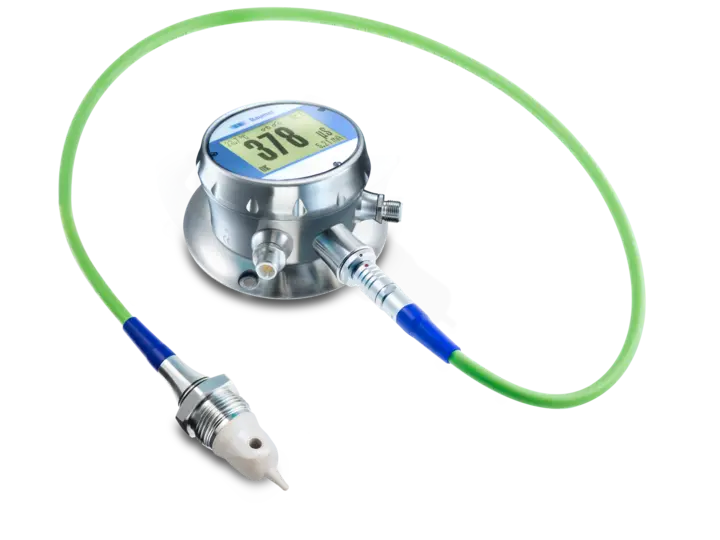

Conductivity sensor AFI5-A813.4002.0300

CombiLyz Conductivity Measurement Sensor; separated Sensor with 10-Meters Sensor Cable; Wall mounting Housing; Power Supply: 15-35 Vdc; Electrical Connection: Plastic, 2xM16x1.5 Cable Gland; With Display & activated Relays; Safety Features: Standard; Configuration: Nil; Output: 2 x 4 to 20mA; Version: Standard; Process Connection: G 1 A Hygienic, PEEK, Length: 60mm (A04); Approvals: 3-A/EHEDG; Without Calibration Certificate. Conductivity 14 selectable ranges

Min. measurable conductivity 50 µS/cm

Max. measuring span

1000 mS/cm

Min. measuring span

500 µS/cm

Max. measuring error

± 1.0 % FSR , 0 … 1 mS/cm to 0 … 500 mS/cm

± 1.5 % FSR , 0 … 1000 mS/cm

± 1.5 % FSR , 0 … 500 µS/cm

Reference temperature

25 °C , adjustable

Repeatability

< 0.5 % FSR , > 1 mS/cm

Compensated temperature range

-20 … 150 °C

Temperature compensation

0.0 … 5.0 % FSR/K , adjustable

Step response time, T90

≤ 2.0 s

Sample time

≤ 0.4 s
